Folds flat to just 300mm deep, cutting container freight cost dramatically.
| External Dimensions | 5800 × 2480 × 2520 mm |
| Internal Dimensions | 5670 × 2360 × 2400 mm |
| Folded / Packed | 5800 × 2480 × 300 mm |
| Weight | 900 kg |
| 40HQ Loading | 14 units / 40HQ |
| Footprint | 15 m² |
F50 packs to 300 mm, F65 to 400 mm — up to 80% less shipping volume than rigid units.
The best freight economics in our range; every container carries a small neighbourhood.

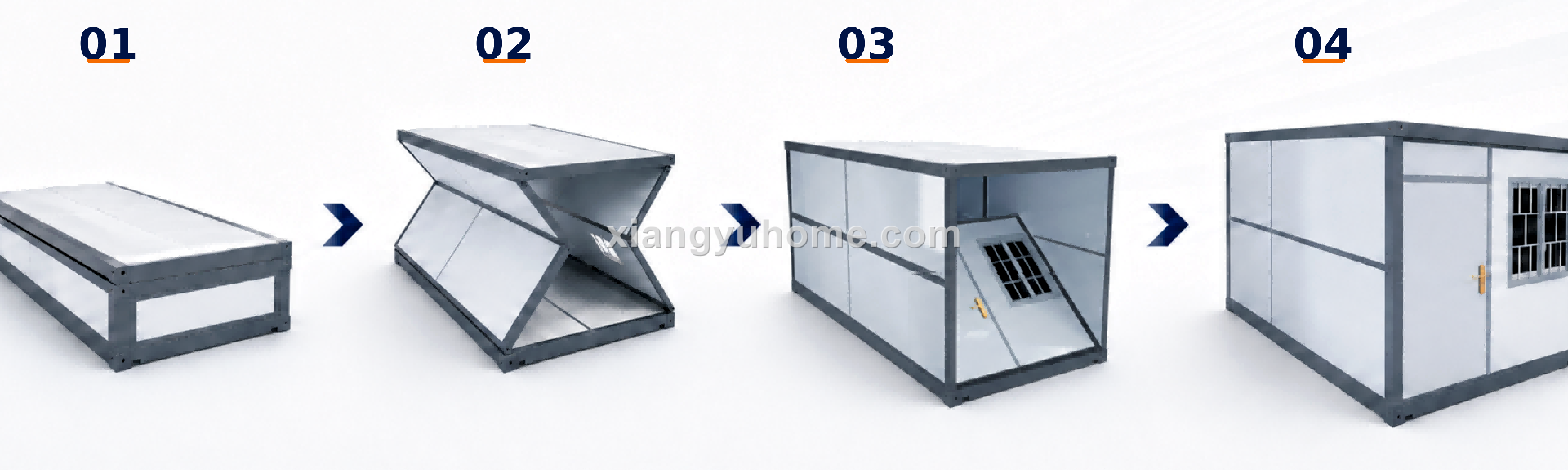

No crane, no specialist trades — a small crew unfolds and locks a unit in well under an hour.
The format of choice for emergency housing and disaster response, where speed is the specification.
F65 offers a taller interior ceiling and folds to 400 mm (10 units per 40HQ); F50 folds to 300 mm (14 units per 40HQ) with a slightly lower ceiling. Full specs are on each model page.
Shipping: 100 F50 units is roughly eight 40HQ containers. On the ground, crews unfold units in parallel — with basic site preparation done in advance, a 100-unit deployment is achievable in days.
No — the panels are the same insulated sandwich construction as our rigid products; the fold geometry is achieved in the frame engineering, not by thinning the walls.
Yes. Units are designed for repeated fold cycles, so rental fleets and event operators redeploy the same stock season after season.
